Product Description:
A Photoelectric Sensor is an essential component in various industrial applications, serving as a Machine Guarding Sensor, Object Counting Sensor, and Analog Output Sensor. This versatile sensor is equipped with advanced features to ensure reliable performance in monitoring and detecting objects accurately.

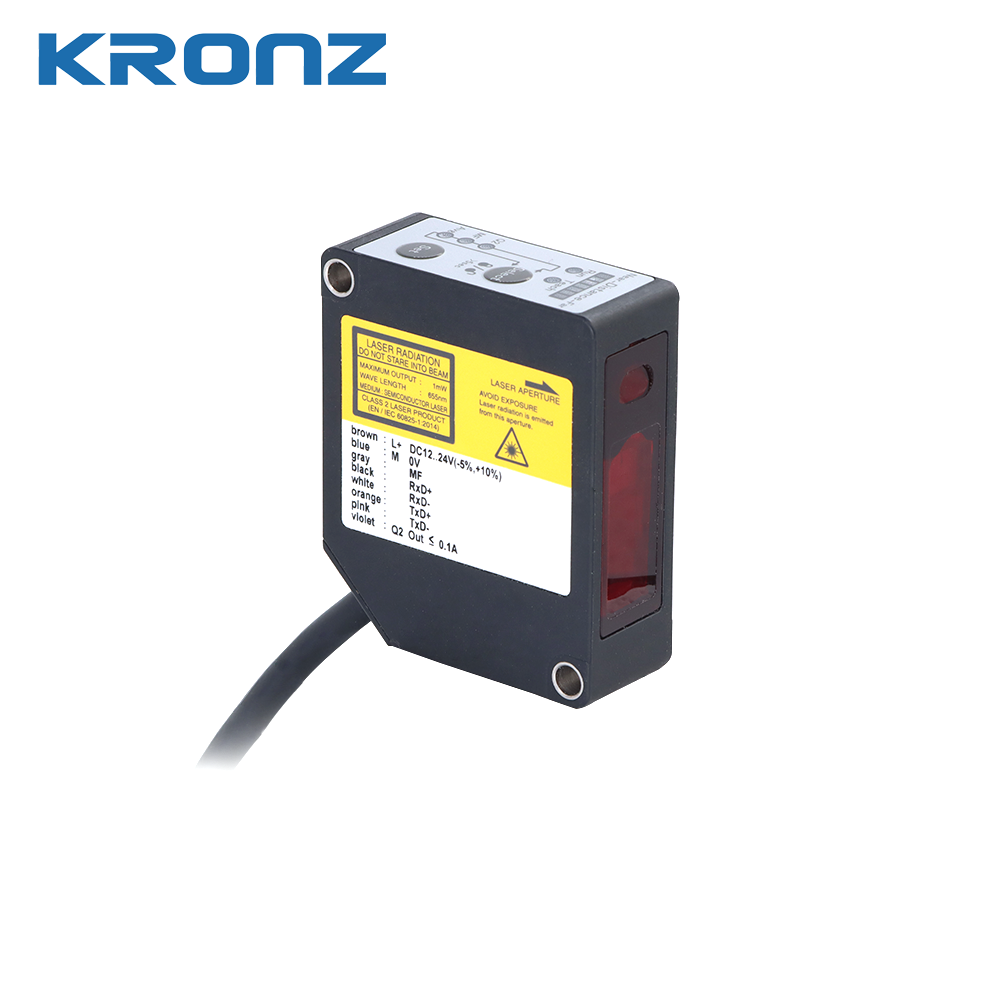

What is a CMOS Laser Displacement Photoelectric Sensor?
A CMOS laser displacement photoelectric sensor is a high-precision, non-contact measuring device that uses a laser triangulation method and a CMOS image sensor to detect distances, thicknesses, or surface profiles. It is designed for micron-level accuracy, fast response, and reliable performance even on challenging surfaces such as metal, dark materials, and textured surfaces.
| Cable Type | 2CH | KD50-85N |
| Output Signal | Switching output: NPN (-N), |
| Detection Range | 85±20mm |
| Full Scale(F.S.) | 40mm |
| Light Source | Red Laser diode (wavelength 655nm) |
| IEC/JIS Rating(FDA Rating) | Class 2(Class Ⅱ ) |
| Factory Setting | 500μs(250mm:750μs) |
| Spot Size (max.) | Center Range | 0.75x1.25mm |
| Response Time | High-speed Mode | max.5ms: sampling average x 1 (1ms) + sensitivity switch time (max.4ms) |
| Standard Mode | max.12.5ms: sample average x 16 (8.5ms) + sensitivity switch time (max.4ms) |
| Temperature Drift | ±0.08%F.S./° C |
| Operating Temp./Humidity | -10~45° C/35~85%RH(no condensation or icing) |
| Shock Resistance | 50G(500m/s²) |
Applications:
KRONZ Photoelectric Sensors are versatile and high-quality sensors suitable for a wide range of applications. With its brand name established in the industry, these sensors are designed to meet various needs and provide reliable performance. Originating from Guangdong, China, the sensors come with CE certification, ensuring their compliance with international quality standards.
CMOS Laser Placement Photoelectric Sensor applications by Industry:
- Gap and Flush Inspection: Measures the spacing and alignment between car body panels (doors, hoods, bumpers) to ensure consistent fit and finish.
- Lighting and Bumper Assembly Accuracy: Ensures components are properly mounted with no protrusions or misalignment.
- Brake Disc Runout Detection: Measures variations in brake disc rotation to identify warpage or misalignment.
- Battery Module Thickness Checking (EV manufacturing): Used to measure battery cell thickness, casing alignment, or stack consistency during electric vehicle battery pack assembly.
